Low Pro Split Tilt Trailer

low pro split tilt trailer

Excellent for skid steer loaders, small tractors, fork lifts, scissor lifts just about any HD equipment

Heavy duty, low profile tilting trailers. Main frame is a 1/4″ wall rectangle tube, one piece swept back to axles from hitch. This maintains low trailer height and tilt angle, 16″c floor supports, lockdown lever, cushion cylinder to slow travel when loading and unloading. HD tread plate fenders standard. LED lighting, 10,000# drop leg jack standard.

These are available in full tilt as well as the split tilt. All sizes available from 16′ up to 28′ length. GVW rating available from 10,000 up to 17,000. Call for other available sizes.

Photos

Specifications

Many custom features can be added to these trailers.

  • Tongue & Groove Wood
  • Tongue & Groove Rumber
  • White Oak decking
  • HD Steel Tread Plate Floor
  • Tool Boxes
  • Chain Trays
  • Fork Holders
  • Hydraulic Disc Brakes
  • Surge Hydraulic Brakes
  • Several Tire Options
  • Galvanized wheels
  • Colors Are No Upcharge
  • Galvanized Frame Upcharge
  • Power tilting

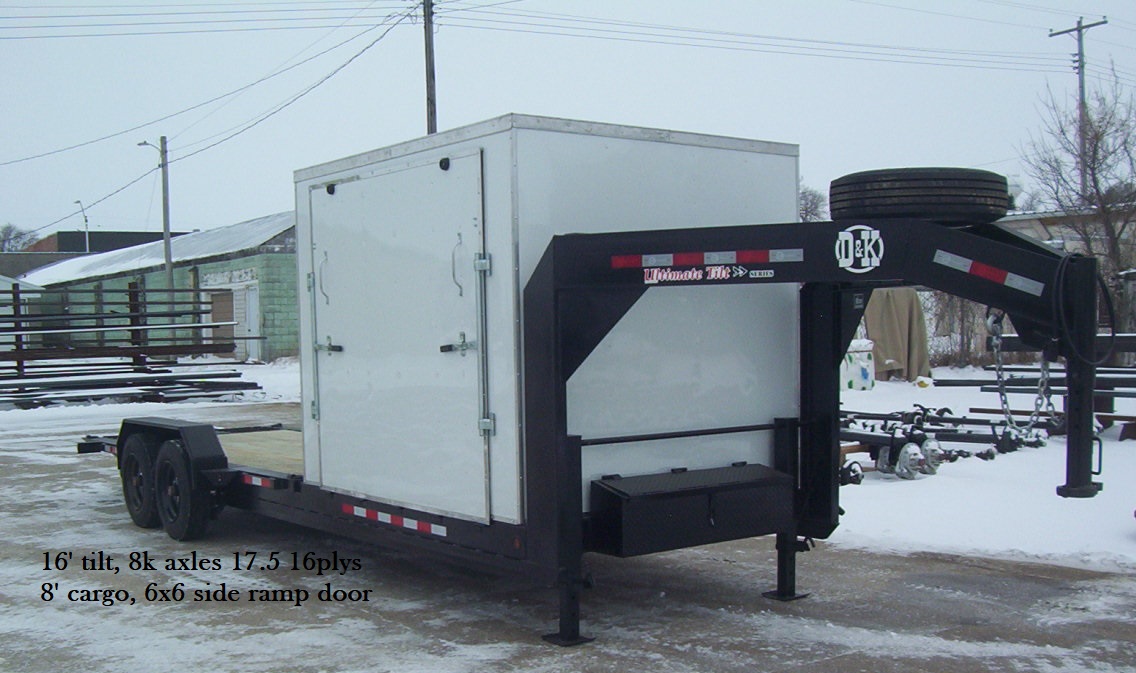

  • Goosenecks
  • Full 102″ wide deck extensions

Available with 8,000# axles & super single 17.5″ for a 17,000GVWR
7x3x1/4″ HD tube frame—-Low Profile

 SA17 Low pro split tilt > 4′ fixed front steel, 13′ tilt
cushion cylinder. available with 5,200- 6,000 & 7,000# axles.
Same low deck tube frame design.

GALVANIZE Ultimate finish
35-40 year Finish proven and tested
